KEDA (Kubernetes Event-Driven Autoscaling) is a CNCF graduated project that scales workloads based on external event sources - queues, streams, cron schedules, Prometheus metrics, and 60+ other triggers.

​
What Radar Shows

Topology: ScaledObject → target workload (Deployment, StatefulSet, or Rollout). ScaledObject and ScaledJob triggers also link to observed TriggerAuthentication or ClusterTriggerAuthentication resources. Authentication is a dependency, not an autoscaler target; omitted kind defaults to a same-namespace TriggerAuthentication. Cluster-scoped targets retain per-kind read gating. These declarations do not prove credential validity or trigger readiness. Applications configuration references and counts exclude authentication objects the caller cannot read.

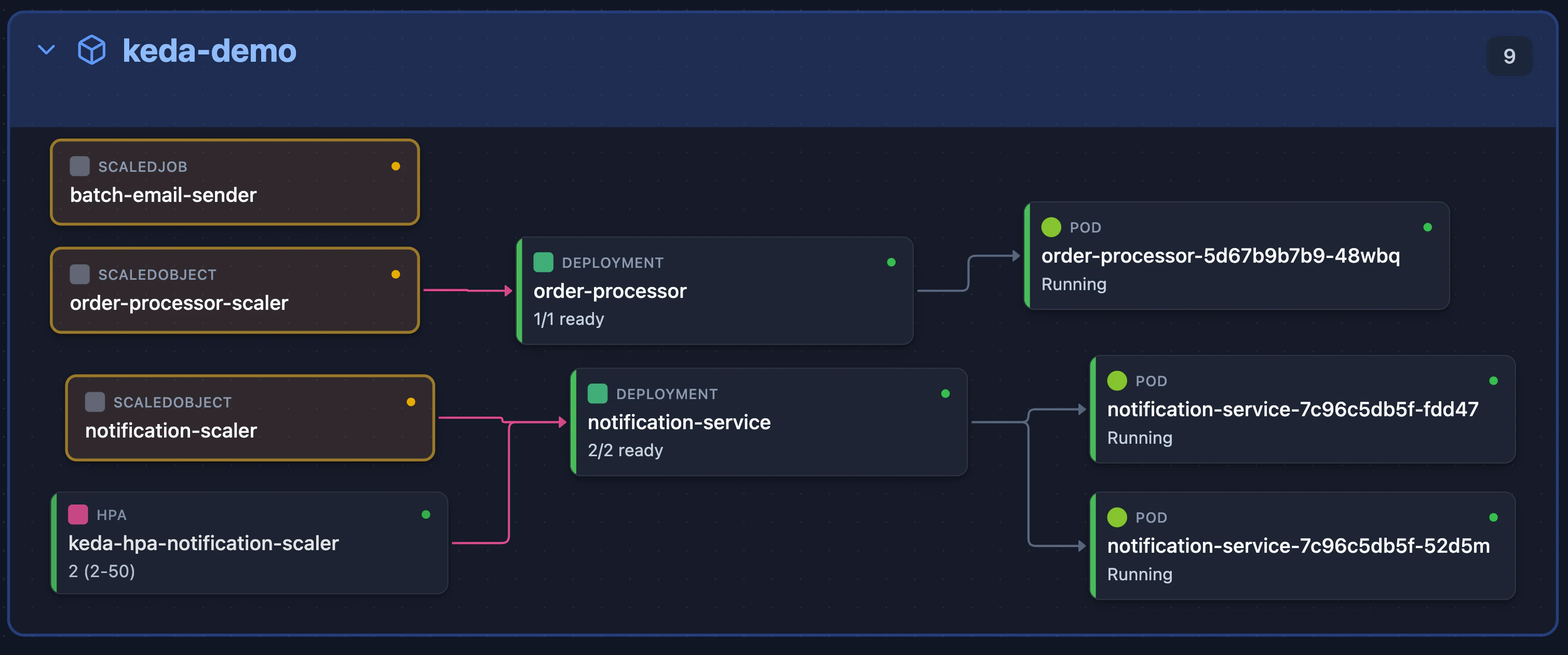

KEDA Topology

KEDA in Topology View - ScaledObject → Deployment → Pod scaling chain

ScaledObject Detail View:
  • Status conditions (Ready, Active, Paused, Fallback)
  • Target workload reference
  • Min/Max/Idle replica configuration
  • Polling interval and cooldown period
  • Trigger list with type and metadata
  • Generated HPA name
  • Pause state detection (supports all 3 annotation variants)

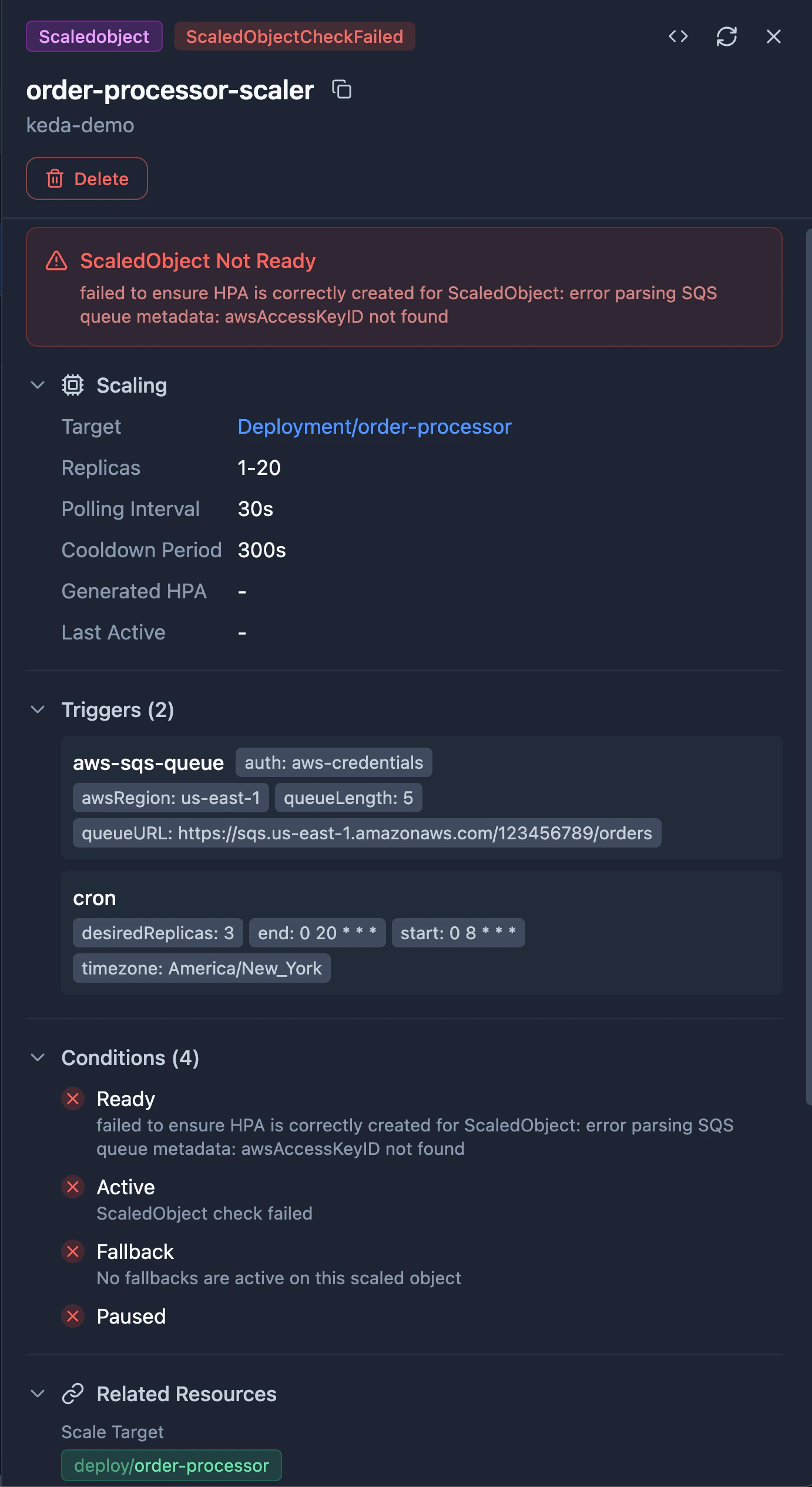

ScaledObject Detail

ScaledObject Detail View - Status conditions, target workload, triggers, and replica configuration

ScaledJob Detail View:
  • Status conditions
  • Job target reference
  • Scaling strategy (default, custom, accurate, eager)
  • Success/failure limits
  • Trigger list
TriggerAuthentication Detail View:
  • Pod identity provider and configuration
  • Secret references with linked Secret navigation
  • Environment variable mappings
  • External secret providers (HashiCorp Vault, Azure Key Vault, AWS Secrets Manager)

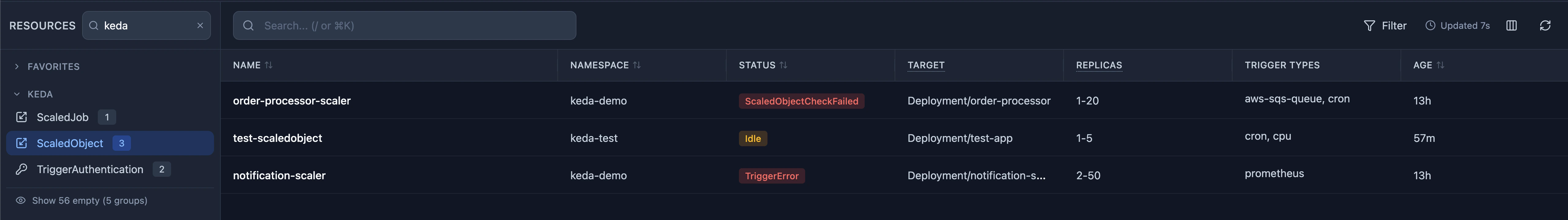

Resource Browser: Smart columns show status, target workload, trigger count, and replica range at a glance.
ScaledObject List

ScaledObject Resource Browser - Status, target workload, trigger count, and replica range

​
Supported CRDs
