Radar can drop you into a pod, attach a debug container, forward a port to your laptop, or open a local terminal. Each is gated by RBAC and can be disabled per-install.

​
Pod terminal

Click Exec on any pod (or a container row). Radar opens a WebSocket-backed terminal in the side panel, falling back to SPDY automatically - so exec, attach, and copy work behind gateways (like the GKE Connect Gateway) that block SPDY.
  • Default shell cascade: bash -il → ash → sh. Override with --pod-shell-default 'bash -l'.
  • Multiple terminals can be open simultaneously; they’re persisted in the URL so you can share or reload.
  • Explicit copy and platform-aware paste keep the terminal usable across browsers and operating systems.
  • Closing the panel terminates the exec session immediately.
RBAC: needs pods/exec on the namespace. Disabled by default in the chart - opt in with rbac.podExec: true. Per-user installs (proxy / OIDC auth) inherit each user’s exec permissions. Disable cluster-wide with --disable-exec.

​
Debug containers

For pods running minimal images (distroless, scratch), Radar can inject an ephemeral debug container with a full shell. Click Debug instead of Exec on the pod. The debug container shares the target pod’s PID and network namespace by default - so ps, netstat, and friends see what the target sees. Image: defaults to busybox:latest, and the same image is used for node debug pods. In air-gapped or private-registry clusters where that can’t be pulled, point it at a mirror with --debug-image (standalone) or the debug.image Helm value. Radar doesn’t attach image-pull secrets to debug containers or pods - ephemeral containers inherit the target pod’s, and node debug pods rely on the default namespace’s ServiceAccount / node registry config - so the image must be pullable without Radar supplying credentials. RBAC: needs pods/ephemeralcontainers patch. Same on-by-default behavior as podExec.

​
Port forwarding

Forward any pod or service port to your local machine. Click the port number in the resource row → Forward.
  • The list of active forwards is in the bottom-right tray. Click any one to copy the local URL.
  • SSE-pushed status keeps the tray live across pages.
  • Forwards survive page navigation but stop when you close Radar.
  • If a forward fails (for example, the target pod was replaced), a Retry button re-resolves to a running pod in one click.
RBAC: needs pods/portforward on the namespace. Disabled by default in the chart - opt in with rbac.portForward: true.
Live forwarding only works when Radar runs on your machine. When Radar runs in-cluster or in Radar Cloud, the forward’s listener would bind on the Radar pod - unreachable from your browser - so live port-forward is gated off. Instead, every port shows a copy-paste kubectl port-forward command you can run with your own kubectl and cluster credentials, and HTTP ports get a Probe button that works without any local setup.
API:
GET    /api/portforwards                                        # list
POST   /api/portforwards                                        # create
DELETE /api/portforwards/{id}                                   # stop
GET    /api/portforwards/available/{type}/{namespace}/{name}    # which ports a target exposes

​
Probe a Service endpoint

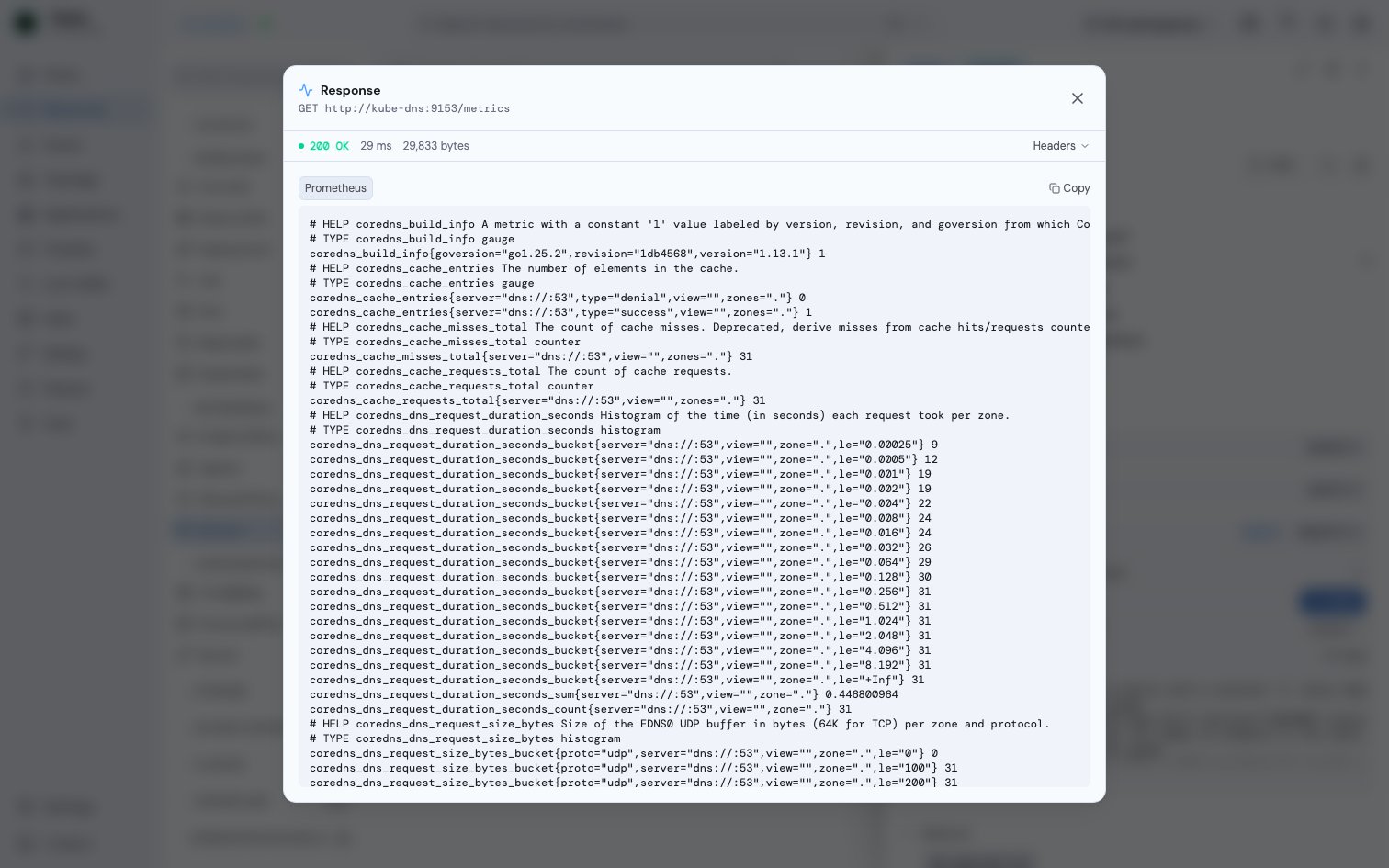

When a live port-forward isn’t possible (Radar Cloud / in-cluster), you can still answer “is this endpoint alive, and what does it return?” without leaving the browser. On an HTTP-ish Service port, click Probe (or Curl): Radar issues a single GET to the Service from inside the cluster and shows you the response - status, latency, byte count, headers, and a capped body. Radar's Probe response dialog - a GET to kube-dns:9153/metrics returning 200 OK with latency, byte count, headers, and the response body
  • GET-only, 10s timeout, 512 KiB body cap, and redirects are not followed (a probed workload can’t bounce the request elsewhere or be used to leak credentials).
  • Only HTTP-ish TCP ports get the button (a heuristic over appProtocol, port name, and common HTTP port numbers); UDP and non-HTTP ports don’t.
  • Edit the scheme and path before sending; the full response opens in its own dialog for large bodies like /metrics.
RBAC: authorized by a SubjectAccessReview for get on the Service’s services/proxy subresource, using your identity - so Probe never reaches an endpoint you couldn’t reach yourself. No extra capability flag; a 403 surfaces in the response. (Local, no-auth installs are always allowed.) API:
POST   /api/probe/service     # GET a Service via the apiserver services/proxy subresource
POST   /api/curl/service      # in-cluster direct dial to a Service (no credentials sent to the workload)

​
Local terminal

Radar can open a terminal on the machine running Radar (your laptop for local installs, or the Radar pod for in-cluster installs). Useful for ad-hoc kubectl / helm commands without leaving the UI.
  • Local installs: full shell access on your laptop. Honors your $SHELL and login config.
  • In-cluster installs: access to the Radar pod’s shell. Combined with the pod’s ServiceAccount permissions, that’s effectively a kubectl session.
Disable with --disable-local-terminal. For in-cluster shared deployments where you don’t want operators having a shell on the Radar pod, set this and rbac.podExec: false.

​
Restricted-permission preview

If you want to preview what a restricted operator would see, run with --disable-helm-write / --disable-exec / --disable-local-terminal to mask those features in the UI without changing your real RBAC.

​
