Compare resources

Compare any two Kubernetes resources of the same kind side-by-side. The classic use case: “is this staging Deployment actually identical to prod?” or “why is api-v2 flaking when api-v1 is healthy?” - questions you’d otherwise answer by exporting two YAMLs and running diff by hand.

​

Two ways to enter

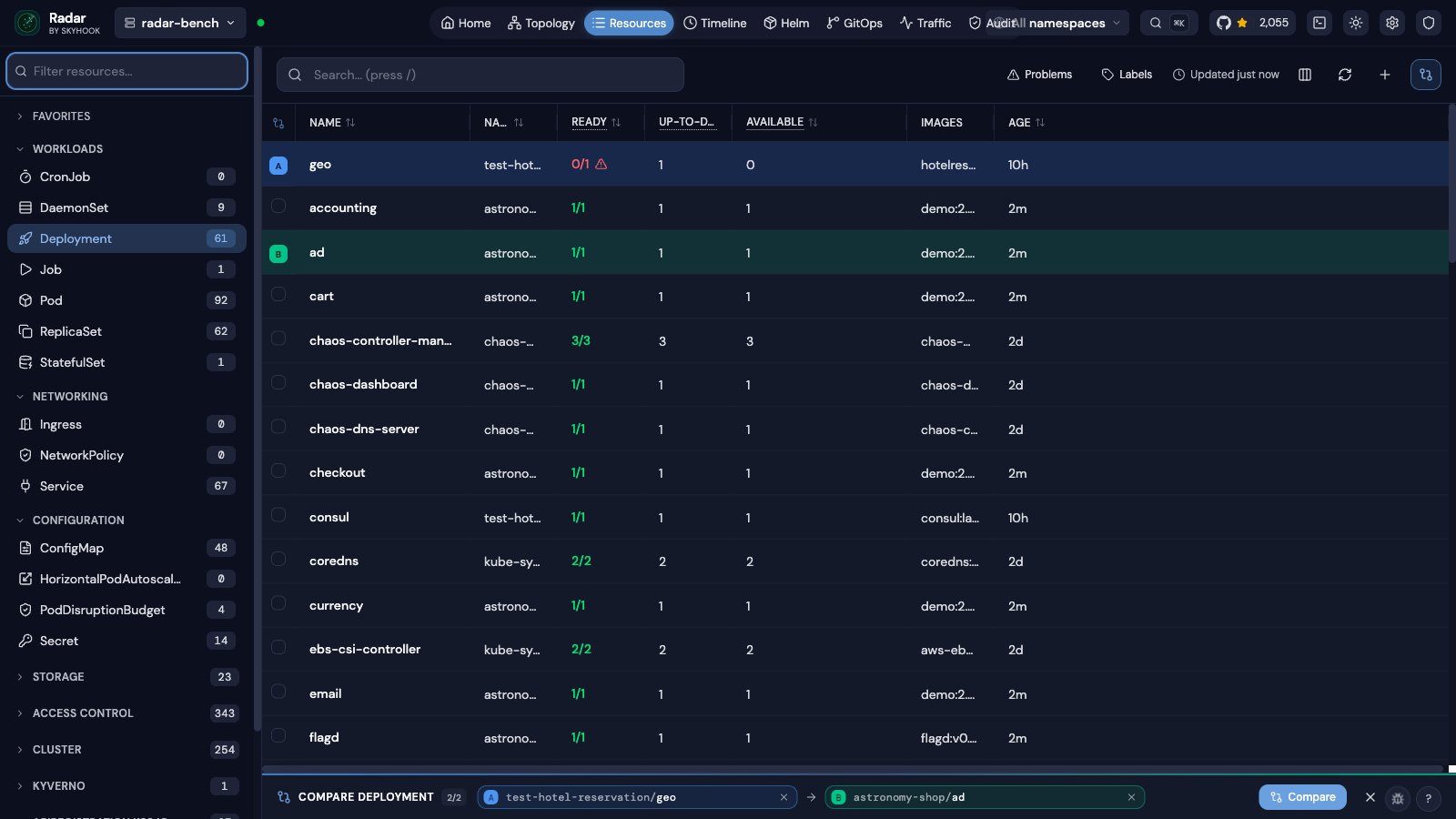

From a resource detail page. Click the Compare button in the action bar. A picker opens listing every other resource of the same kind. Same-namespace candidates are surfaced first (usually the one you want), with ↑↓ arrow keys and Enter for fast keyboard picking. From the resource table. Hit the Compare ⇄ toggle in the table header. The table flips into compare mode - a leading A/B-badge column appears and a sticky tray slides up at the bottom. Click two rows, then hit Compare in the tray. Both flows land on the same shareable URL: /compare?kind=&apiGroup=&a=ns/name&b=ns/name (the apiGroup param is only required for CRDs that collide with core kinds).

​

What the diff shows

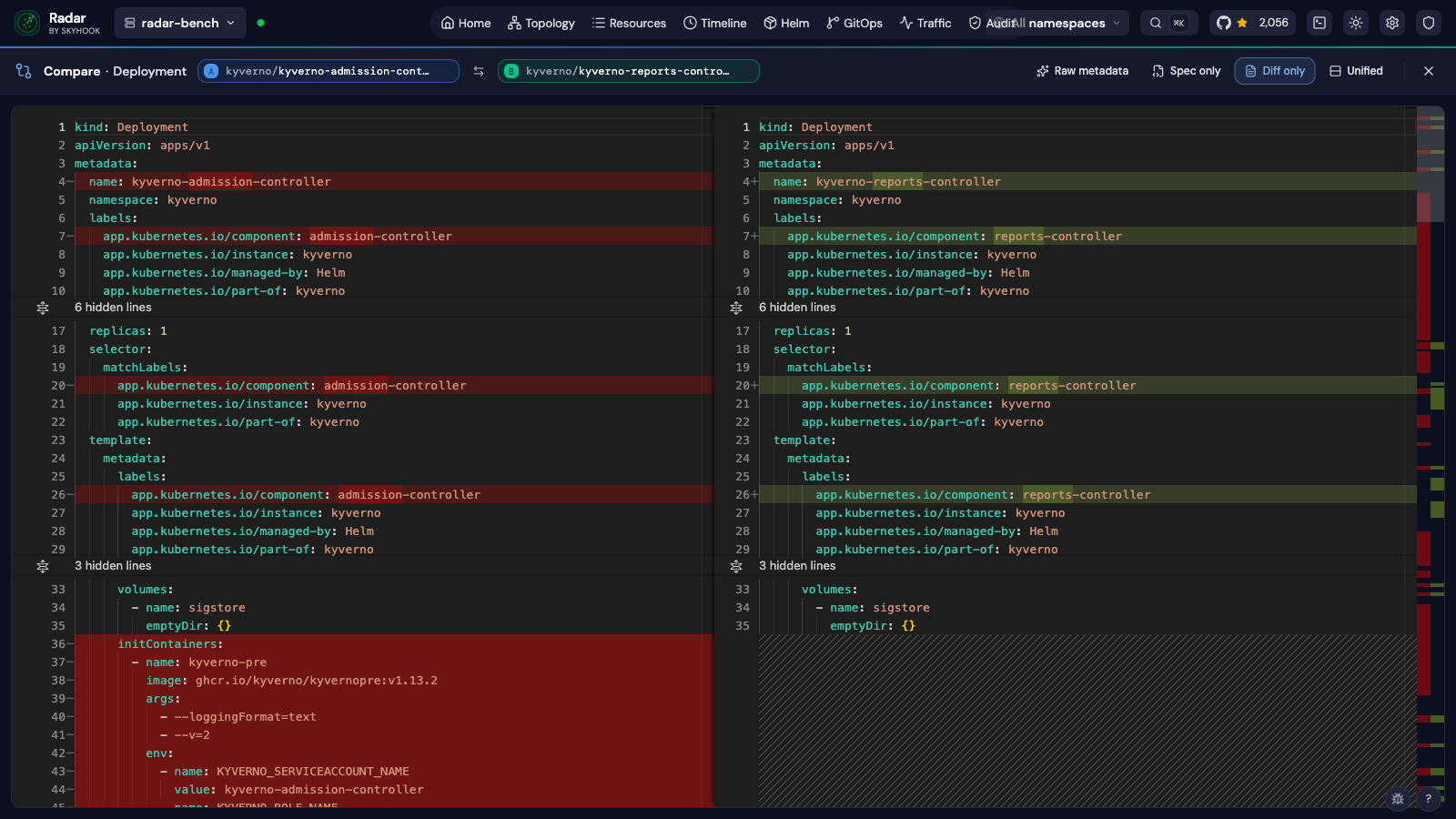

Side-by-side YAML with Monaco’s diff editor. Red lines on the left are present in A but missing or different in B; green lines on the right are present in B but missing or different in A. The overview ruler on the right edge gives you a bird’s-eye map of where the changes are. Four header toggles, each constant-label with a highlight indicating the active state:

• Raw metadata - off by default. Keep it off and Radar strips the server-assigned noise listed below (uid, resourceVersion, managedFields, last-applied-configuration, etc.) before computing the diff. Flip it on if you’re debugging API-level oddities and actually want to see those fields.
• Spec only - drops status from both sides so the diff focuses on intent, not the controller’s view of current state. Useful when one resource is mid-rollout.
• Diff only - collapses unchanged regions to a single line. The default; flip it off to see the full YAML for context.
• Unified - switches between side-by-side (default) and a single-column layout with + / - lines. Unified packs more content per line height; side-by-side reads more like a code review.

A small swap button between the pills flips A ↔ B, and the pencil icon on each pill re-opens the picker so you can change one side without losing the other.

​

What’s stripped before diffing

K8s API responses carry a lot of server-assigned noise that always differs between two resources but doesn’t reflect any meaningful difference. By default - with Raw metadata off - Radar strips it before computing the diff:

• metadata.managedFields (server-side apply tracking - huge and never interesting in a compare)
• metadata.resourceVersion, metadata.uid, metadata.generation, metadata.creationTimestamp, metadata.selfLink, metadata.deletionGracePeriodSeconds
• metadata.annotations.kubectl.kubernetes.io/last-applied-configuration (massive duplicated JSON blob)
• metadata.annotations.deployment.kubernetes.io/revision
• metadata.labels.pod-template-hash, metadata.labels.controller-revision-hash

User-defined labels, annotations, spec, and (unless you toggle Spec only) status all stay.

​

Errors render per side

If A loads but B 404s (a stale share-link is the typical cause), the working side still renders. The failed side’s pill turns red, and a banner names exactly which side failed and what went wrong - click the pencil icon to pick a replacement without rebuilding the URL.

​

Scope of v1

• Same kind only. Comparing a Deployment to a StatefulSet would be more confusing than useful.
• Two-way. Cap is hard-set at 2 picks; selecting a third in the table replaces the oldest so the click always has a visible effect.
• Single cluster. Same-cluster compare today; cross-cluster lands when Radar Hub gets multi-cluster.

​
